SWITCH-PROS 9100 BEZEL STYLE 8-SWITCH PANEL POWER SYSTEM WITH CONCEALED MOUNTING HARDWARE

Eliminate under hood and under dash wiring clutter with this switch system from Switch-Pros.

Most of us have been there. It all starts out with adding a single set of auxiliary lights, so we just run the wiring, you hook up your power and ground to the battery, then mount the switch on your dash somewhere clean and easy to access. No problem. But then you add another set of lights, maybe a winch, an amplifier, and before you know it, you've got five or more auxiliary power sources going to your battery and holes drilled all over your dash. This is exactly what Switch-Pros' Power System alleviates.

The Bezel Style Switch-Pros SP-9100 is designed to deliver a super clean mounting solution that features concealed mounting hardware, perfect for mounting in your dash, yet still delivering a factory looking install.

Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.

DETAILS:

• Eight user-programmable switches
• Four 35A circuits and four 18A circuits
• Waterproof, Solid State 125A Power Module

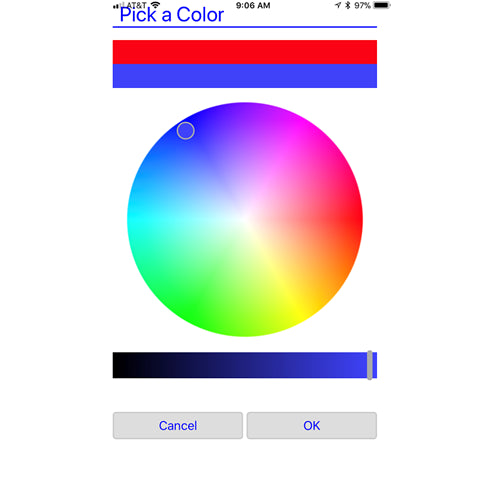

• RGB Backlighting provides unlimited color options, using Color Picker on App
• Daisy Chain up to 3 Switch Panels to One Power Module
• Switches can be programmed for:
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Memory Function
• Master Mode, with ability to turn multiple outputs On AND Off with one touch
• Automatic Power-Up upon vehicle start up
• Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
• Sleep Mode for minimal power consumption
• Color Coded circuit wires
• 100 User-selectable switch legends
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splash proof switch panel with Polycarbonate overlay faceplate
• Program and control the system from switch panel pad or smart phone
• Bluetooth interface with FREE Apple or Android App
• Battery Voltage Readout on App screen
• No Fuses or Bulky Relay box
• Built-In Bluetooth Module
