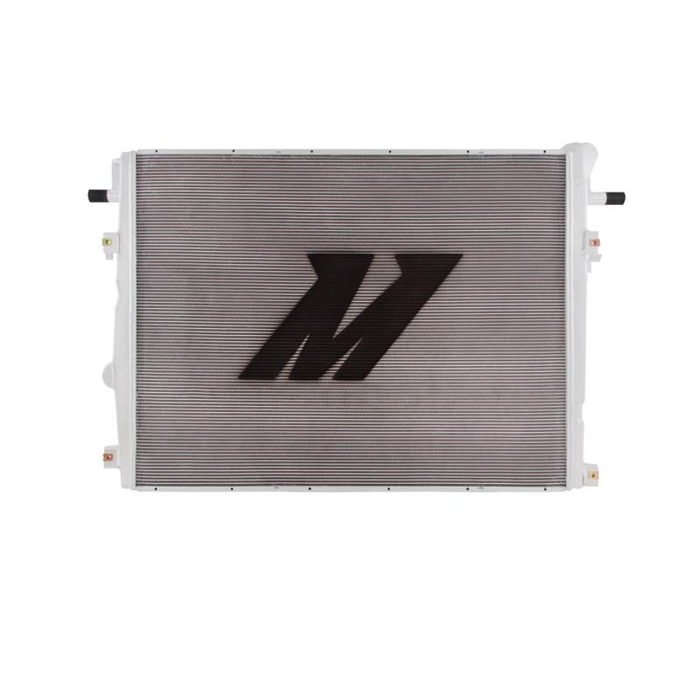

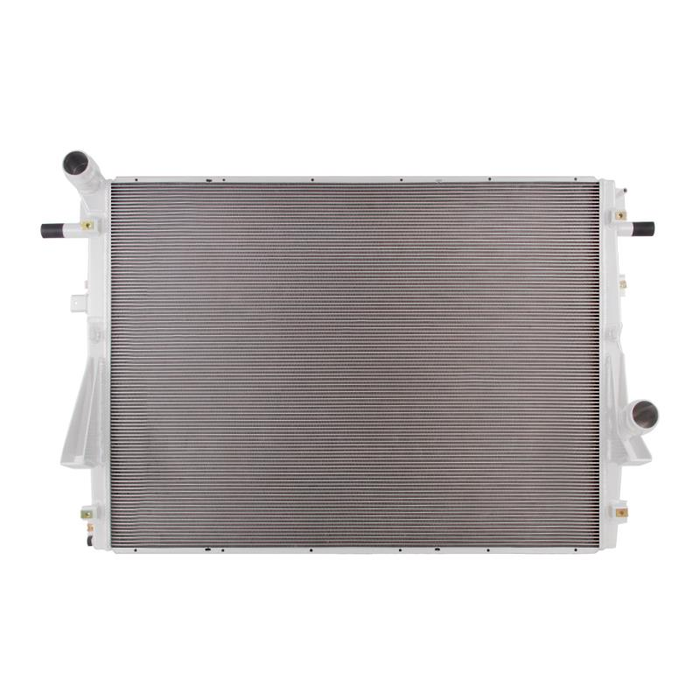

MISHIMOTO MMRAD-F2D-11V2 2011-2016 FORD SUPER DUTY 6.7 RADIATOR

MISHIMOTO MMRAD-F2D-11V2 2011-2016 FORD SUPER DUTY 6.7 RADIATOR

Regular price $1,009.32
Regular price Sale price $1,009.32
Sale Sold out

SKU:MMRAD-F2D-11V2

Product Description

The engineers are Mishimoto have been hard at work designing an all-aluminum 6.4 radiator to put an end to puddles of coolant under your truck. The Mishimoto 6.4 Powerstroke radiator is constructed from high-quality aircraft-grade aluminum with a 100 Percent brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity. 6.4 Powerstroke radiator have much different mounting designs than their predecessors, with two side mounting pegs which attach the radiator to the upper support. On the factory Ford 6.4 radiator, solid side mounting pegs transfer force from the truck directly to the radiator, causing failures. The engineers at Mishimoto designed rubber mounting pegs, specifically for this truck, to reduce the flex force aimed at the 6.4 radiator end tanks. Pair this 6.4 Liter radiator with the Mishimoto 6.4 Powerstroke Silicone Coolant Hose Kit for the most durable cooling solution around. As with all our Powerstroke performance parts, this Ford 6.4 radiator is protected by the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Features & Benefits

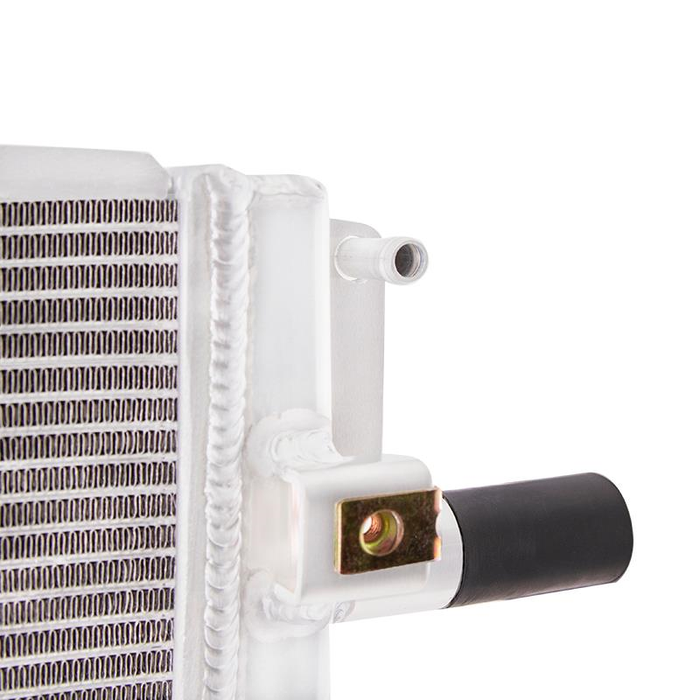

  • Incorporates Co-Molded Aluminum/Rubber Mounting Pegs To Reduce The Truck’s Torque Transfer To The Radiator

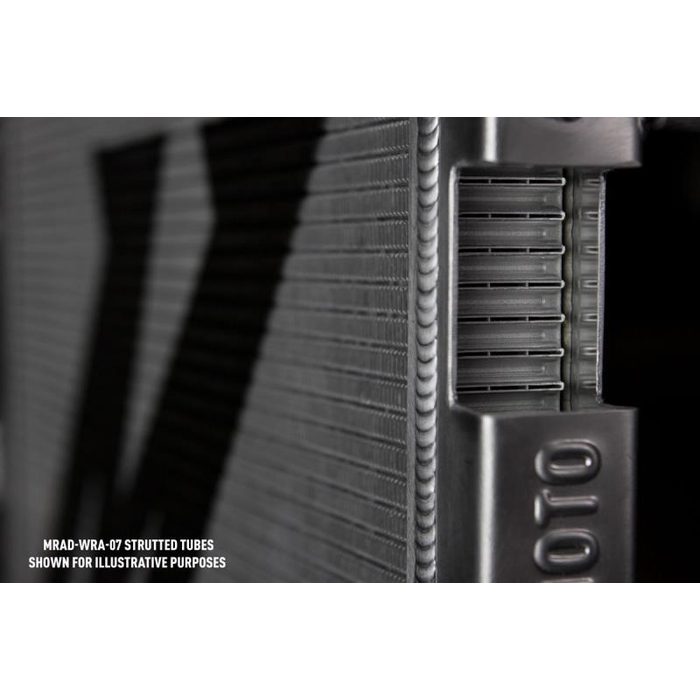

  • Incorporates Internally Strutted Tubes In The Top And Bottom 8 Rows For Increased Strength Against High Pressure And Temperature
  • Strengthened Top And Bottom Core Support Plates Prevent Core Torquing And Bending
  • 100 Percent Increase In Coolant Capacity

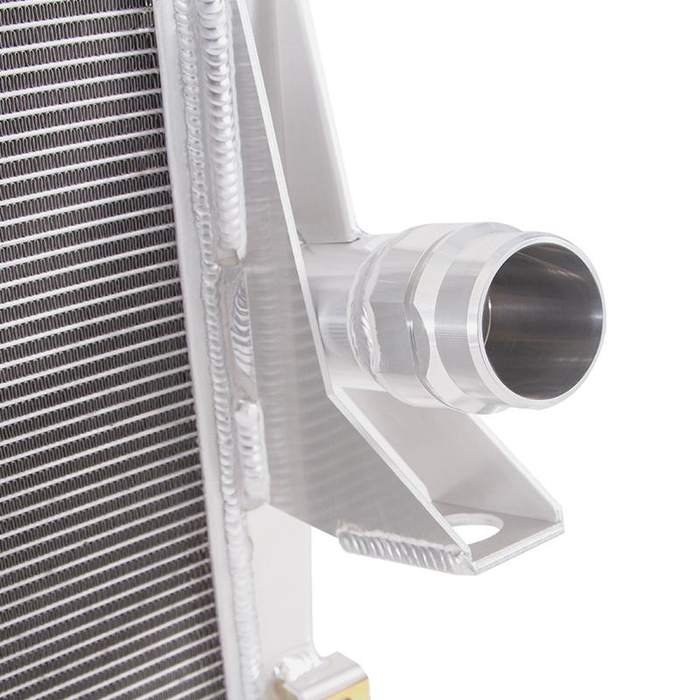

  • CNC Machined Factory-Style Quick-Disconnect Inlet And Outlet

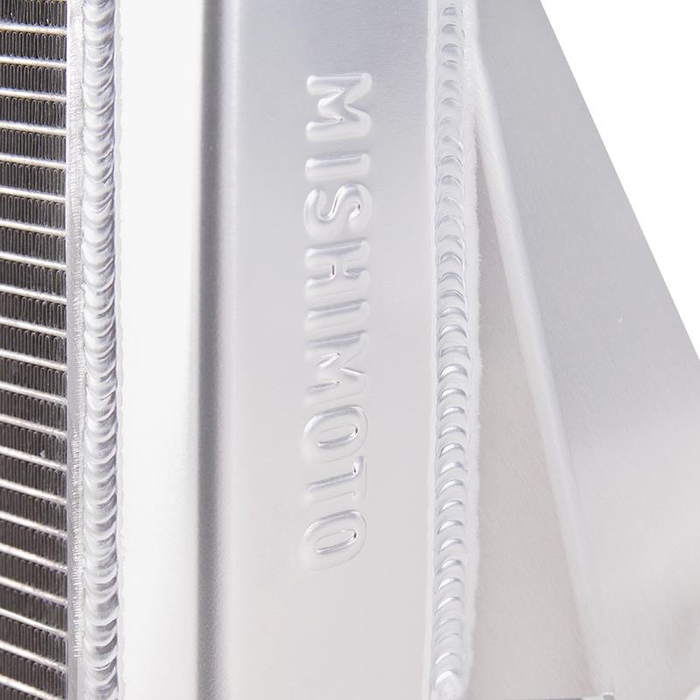

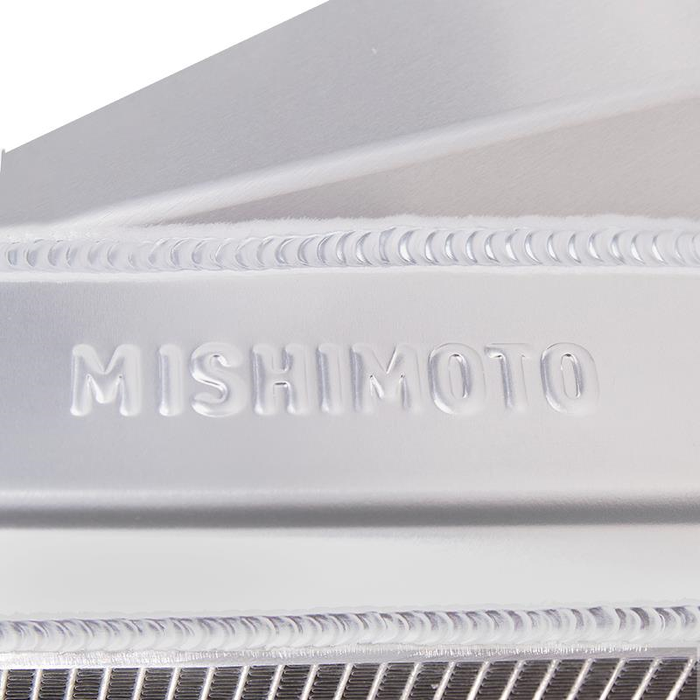

  • Tig-Welded To Perfection
  • Free Replacement For Accidental Damages

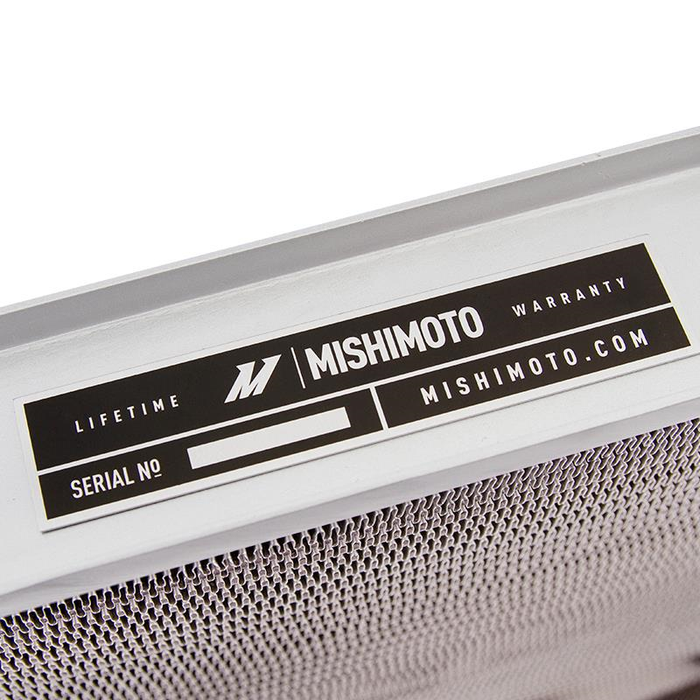

  • Limited Lifetime Warranty

Attributes

  • Position On Vehicle: Primary
  • Flow Direction: Crossflow
  • Overall Length (IN): 49 Inch
  • Overall Height (IN): 30.2 Inch
  • Overall Depth (IN): 8 Inch
  • Core Rows: Two
  • Core Material: Aluminum
  • Color: Silver
  • Core Length (IN): 27-3/4 Inch
  • Core Height (IN): 38.38 Inch
  • Core Depth (IN): 1.89 Inch
  • With Radiator Cap: No
  • Includes Fittings: Yes
  • Includes Mounting Hardware: Yes
Product Restrictions
Restriction Icon for OversizedOVERSIZED ITEM - Additional Freight Charges May Apply for 3rd Party Shipping.
Restriction Icon for Prop65WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Restriction Icon for ThirdPartyRestrictionShipping Restrictions Apply
