EDGE EVOLUTION CS2 2001-2016 DURAMAX | 1994-2019 POWERSTROKE | 2003-2012 CUMMINS TUNER PROGRAMMER
EDGE EVOLUTION CS2 2001-2016 DURAMAX | 1994-2019 POWERSTROKE | 2003-2012 CUMMINS TUNER PROGRAMMER
SKU:85300
Couldn't load pickup availability
The Edge Evolution CS2 gives your Duramax, Powerstroke, or Cummins a huge boost in performance as well as the most compact and comprehensive way to view vehicle parameters. Offering up 4 different power levels, including economy and performance, the Evolution makes picking a diesel tuner simple. With the ability to display up to 8 PIDs, tune your rig and add an EGT probe, the Evolution CS2 is a must have.
The Evolution CS2 starts by providing your Duramax, Cummins, or PowerStroke with a range of tunes, from performance to economy, you pick which is best for you. From there the CS2 becomes a powerhouse digital monitor. The Evolution CS2 is capable of monitoring up to 8 different engine vital parameters hand selected by you from a list of dozens. Set warning alerts for parameters that need to stay perfectly in tune and then run your truck through a series of built in performance tests! The CS2 also features the unique MyStyle software developed by Edge; set your Evolution up exactly how you want it, with custom backgrounds, gauge colors, and more.
And because the Evolution CS2 plugs directly into your OBDII port, it also functions as a scan tool for reading and clearing trouble codes.

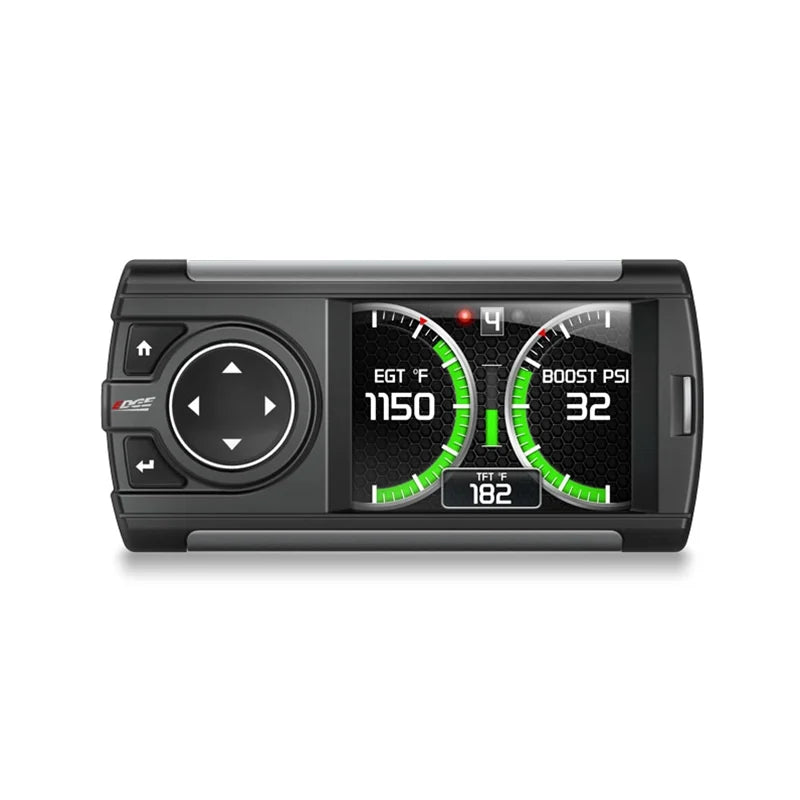

The button-controlled, high-res 2.4" screen was developed to work with all of Edge's EAS products like an EGT probe, and number of other products that further your ability to keep a close eye on your truck.
Check out your vehicle specific power levels below the list of features!Power Levels:
Chevrolet/GMC 2001-2005 6.6L Duramax LB7 LLY
Level 0: Stock
Level 1: 30 HP - 60 Lb-ft TQ
Level 2: 50 HP - 90 Lb-ft TQ
Level 3: 70 HP - 150 Lb-ft TQ
Level 4: 100 HP - 210 Lb-ft TQ
Chevrolet/GMC 2006-2007 6.6L Duramax LLY LBZ
Level 0: Stock
Level 1: 30 HP - 60 Lb-ft TQ
Level 2: 60 HP - 135 Lb-ft TQ
Level 3: 85 HP - 185 Lb-ft TQ
Level 4: 100 HP - 220 Lb-ft TQ
Chevrolet/GMC 2007.5-2010 6.6L Duramax LMM
Level 0: Stock
Level 1: 30 HP - 57 Lb-ft TQ
Level 2: 50 HP - 90 Lb-ft TQ
Level 3: 75 HP - 150 Lb-ft TQ
Level 4: 85 HP - 200 Lb-ft TQ
Chevrolet/GMC 2011-2012 6.6L Duramax LML
Level 0: Stock
Level 1: 40 HP - 85 Lb-ft TQ
Level 2: 70 HP - 160 Lb-ft TQ
Level 3: 90 HP - 200 Lb-ft TQ
Chevrolet/GMC 2013-2015 6.6L Duramax LML
Level 0: Stock
Level 1: 40 HP - 85 Lb-ft TQ
Level 2: 75 HP - 180 Lb-ft TQ
Level 3: 135 HP - 240 Lb-ft TQ
Chevrolet/GMC 2016 6.6L Duramax LML
Level 0: Stock
Level 1: 40 HP - 85 Lb-ft TQ
Level 2: 75 HP - 180 Lb-ft TQ
Level 3: 115 HP - 220 Lb-ft TQ
Dodge/Ram 2003-2004 5.9L Cummins
Level 0: Stock
Level 1: 25 HP - 110 Lb-ft TQ
Level 2: 70 HP - 165 Lb-ft TQ
Level 3: 95 HP - 220 Lb-ft TQ
Level 4: 120 HP - 340 Lb-ft TQ
Quick Features- Tire Size
Custom Options:
Rev Limiter- (Stock, or raised to 4000)
Speed Limiter - (106-250)
Injection Timing-(Edge Optimized, Stock, Mild, Extreme, and Economy)
Rail Pressure Setting (Edge Optimized, Stock, Mild, Advanced, and Extreme)
Tq Management Setting-(Edge Optimized, Stock, Mild, Advanced, and Extreme)
Dodge/Ram 2004.5-2005 5.9L Cummins
Level 0: Stock
Level 1: 55 HP - 130 Lb-ft TQ
Level 2: 80 HP - 185 Lb-ft TQ
Level 3: 115 HP - 275 Lb-ft TQ
Level 4: 175 HP - 430 Lb-ft TQ
Quick Features- Tire Size
Custom Options:
Rev Limiter- (Stock, or raised to 4000)
Speed Limiter (106-250)
Injection Timing-(Edge Optimized, Stock, Mild, Extreme, and Economy)
Rail Pressure Setting (Edge Optimized, Stock, Mild, Advanced, and Extreme)
Tq Management Setting-( Edge Optimized, Stock, Mild, Advanced, and Extreme)
Dodge/Ram 2006-2007 5.9L Cummins
Level 0: Stock
Level 1: 55 HP - 150 Lb-ft TQ
Level 2: 80 HP - 215 Lb-ft TQ
Level 3: 115 HP - 300 Lb-ft TQ
Level 4: 175 HP - 470 Lb-ft TQ
Quick Features- Tire Size, Axle Ratio, Engine Idle up, TPMS Adjustment, Accessory Delay, Head Lamp Delay, Horn Chirp on lock, Lamp Flash on Lock, One Press Unlock, High Idle Enable, Auto Door Lock, and Fog Lamp Control.
Custom Options:
Rev Limiter- (Stock, or raised to 4000)
Speed Limiter - (106-250)
Injection Timing-(Edge Optimized, Stock, Mild, Extreme, and Economy)
Rail Pressure Setting (Edge Optimized, Stock, Mild, Advanced, and Extreme)
Tq Management Setting-( Edge Optimized, Stock, Mild, Advanced, and Extreme
Waste Gate Settings- Off or Stock
Dodge/Ram 2007.5-2009 6.7L Cummins
Level 0: Stock
Level 1: 35 HP - 130 Lb-ft TQ
Level 2: 60 HP - 180 Lb-ft TQ
Level 3: 85 HP - 235 Lb-ft TQ
Level 4: 125 HP - 340 Lb-ft TQ
Quick Features- Tire Size, Axle Ratio, Engine Idle up, TPMS Adjustment, Accessory Delay, Head Lamp Delay, Horn Chirp on lock, Lamp Flash on lock, and Fog Lamp Control.
Custom Options:
Rev Limiter- (Stock, or raised to 3700)
Speed Limiter (102-250)
Injection Timing-(Edge Optimized, Stock, Mild, Extreme, and Economy)
Rail Pressure Setting (Edge Optimized, Stock, Mild, Advanced, and Extreme)
Tq Management Setting-( Edge Optimized, Stock, Mild, Advanced, and Extreme)
VGT Settings- Edge Optimized, or Stock
Dodge/Ram 2010-2012 6.7L Cummins
Level 0: Stock
Level 1: 25 HP - 75 Lb-ft TQ
Level 2: 45 HP - 145 Lb-ft TQ
Level 3: 70 HP - 190 Lb-ft TQ
Level 4: 95 HP - 270 Lb-ft TQ
Quick Features- Tire Size 22.50-42.00, Axle Ratio, High Idle Enable, and Fog Lamp Control.
Custom Options
Injection Timing (Edge Opt, Stock, Advanced)
Torque Management (Edge Opt, Stock, Advanced)
Speed Limiter (102-250)
Ford 1994-1997 7.3L Powerstroke
Level 0: Stock
Level 1: 40 HP - 80 Lb-ft TQ
Level 2: 60 HP - 140 Lb-ft TQ
Level 3: 80 HP - 180 Lb-ft TQ
Ford 1999-2003 7.3L Powerstroke
Level 0: Stock
Level 1: 60 HP - 100 Lb-ft TQ
Level 2: 80 HP - 160 Lb-ft TQ
Level 3: 100 HP - 200 Lb-ft TQ
Ford 2003-2007 6.0L Powerstroke
Level 0: Stock
Level 1: 20 HP - 80 Lb-ft TQ
Level 2: 60 HP - 100 Lb-ft TQ
Level 3: 80 HP - 150 Lb-ft TQ
Level 4: 100 HP - 200 Lb-ft TQ
Ford 2008-2010 6.4L Powerstroke
Level 0: Stock
Level 1: 25 HP - 55 Lb-ft TQ
Level 2: 40 HP - 75 Lb-ft TQ
Level 3: 60 HP - 130 Lb-ft TQ
Level 4: 100 HP - 200 Lb-ft TQ
Ford 2011-2014 6.7L Powerstroke
Level 1 No added power. Optimizes stock tuning with custom options feature to run smoother
Level 2 141 max HP, +148 max lbs-ft TQ
Level 3 157 HP, 180 max lbs-ft TQ
Ford 2015-2019 6.7L Powerstroke
Mileage 72 HP, 203 lb-ft TQ
Tow 43 HP, 134 lb-ft TQ
Performance 106 HP, 315 lb-ft TQ
Ford F-150 2018-2019 3.0L Powerstroke
Level 1: 15 HP, 19 lb-ft TQ
Level 2: 41 HP, 42 lb-ft TQ
Level 3: 53 HP, 128 lb-ft TQ
- This product will not allow for the removal or disablement of factory emissions equipment, such as EGR (Exhaust Gas Recirculation) or DPF (Diesel Particulate Filter).
- Product is not returnable if the packaging has been opened and/or product has been installed.
- Not compatible with Cab & Chassis applications.
