CARLI SUSPENSION ADJUSTABLE TRACK BAR 2005-2016 FORD SUPER DUTY

This track bar replaces the factory unit with a significantly stiffer bar to reduce steering wander, and end death wobble from worn track bar joints. Made here in the USA, this is the highest quality track bar available for 05-16 Ford trucks!

Carli designed their Adjustable Track Bar with a machined tapered rod end with a custom angle offset to increase ball joint life. This design puts less stress on the ball joint at full droop and keeps the ball joint pin vertical at ride height, prolonging the life of wear items. A big 7/8″ heim joint is used on the frame side and it comes with custom machined misalignment spacers. Constructed out of heavy wall mild-steel tube.

The axle side of this track bar is designed around the factory joint which is pressed into the axle. If yours is worn, we recommend adding this Apex joint to your cart as a replacement (click HERE). The Carli track bar incudes the upper frame side joint pictured below as part of the bar.

– Custom Machined Spacers for Maximum Articulation and Perfect Fitment

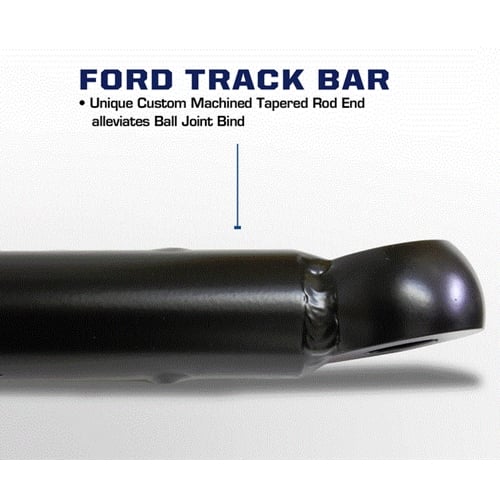

– Offset, Machined Tapered Rod End Re-aligns Axle Ball Joint For Lifted Applications
– Huge Strength Upgrade: Constructed from 1.50 x 3/8″ Wall Tube
– FK Race Heim Frame Connection
– Fitment: 2005-2016 F250/350 4×4 –  2.5″ and 4.5″ Lift
– Will NOT work on Stock Trucks or in Drop Brackets
