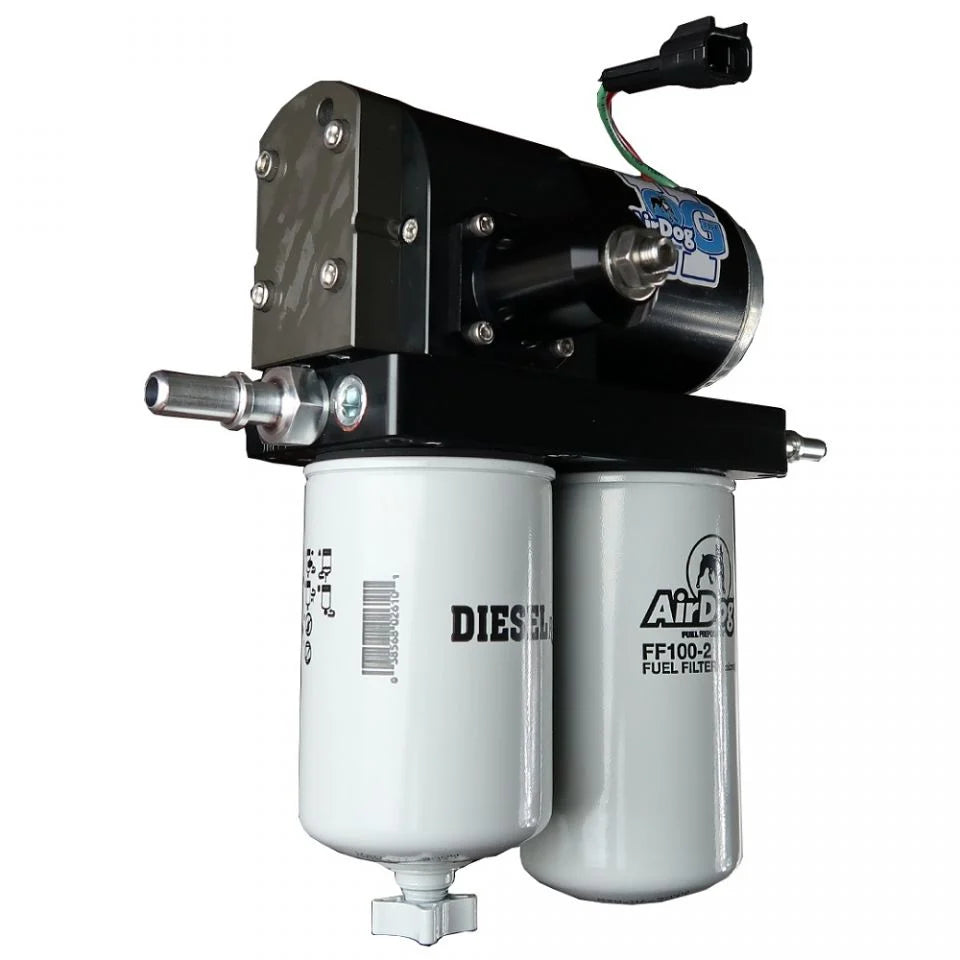

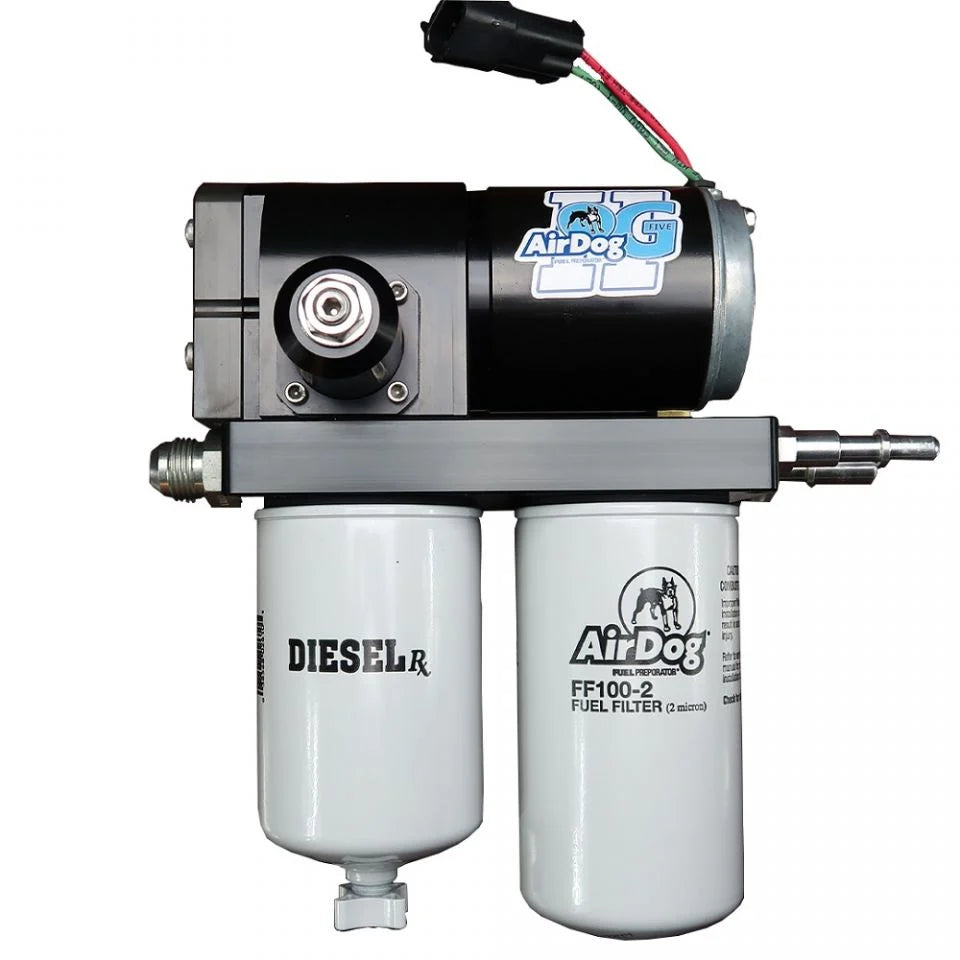

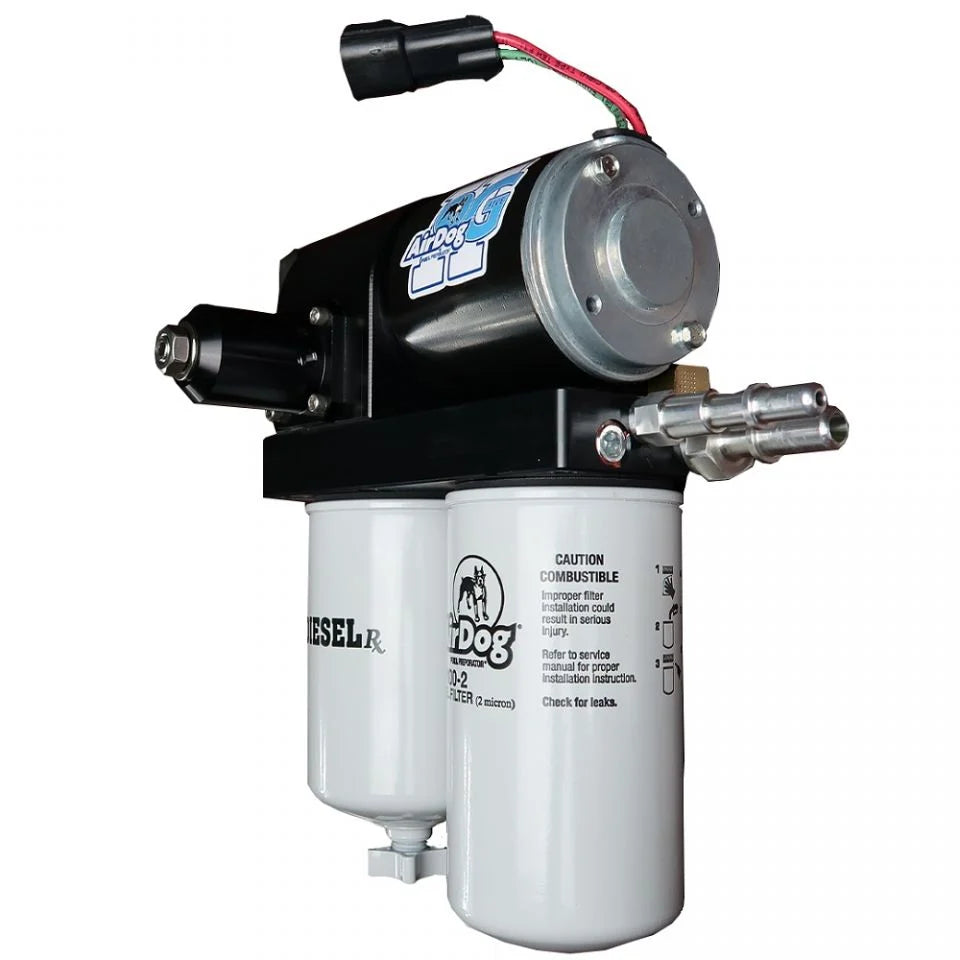

AIRDOG II-5G 165 GPH AIR FUEL SEPARATION LIFT PUMP SYSTEM 2011-2016 FORD 6.7L POWERSTROKE

AIRDOG II-5G 165 GPH AIR FUEL SEPARATION LIFT PUMP SYSTEM 2011-2016 FORD 6.7L POWERSTROKE

Regular price $859.00
Regular price Sale price $859.00
Sale Sold out

SKU:A7SABF589

The 6.7L Powerstroke definitely broke some records upon its release. For starters, it was Ford's first "go" at manufacturing their own diesel engine, dubbed the "Scorpion," and honestly, they knocked it out of the park. And for the performance enthusiasts, the truck can hit nearly 600 horsepower with sheer tuning, exhaust, and cold air intake upgrades. The two areas that have proven that need attention, though, are turbo and fuel delivery upgrades in order to support this kind of power. In terms of upgrading fuel deliver, AirDog has you covered with this fuel system that replaces the factory frame rail fuel pump.

The AirDog II-5G is an all in one premium fuel pump and filtration system for your 2011-2016 6.7L Powerstroke diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.

The AirDogII-5G DF-165 systems feature a built in adjustible diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 65 psi from the factory for a stock application. The regulator is adjustible up to 75 PSI so you can fine tune the system to perfectly match up to your current and future performance upgrades.

HOW IT WORKS:
The AirDog II-5G DF- 165 draws fuel from the fuel tank. The fuel is then drawn through the water separator where 92% of water is removed per SAE spec 1488. It is then pressurized through a Gerotor pump and sent to the 2 micron fuel filter before it is sent to the injection pump. The air from aerated fuel, due to tank sloshing and engine return lines, is separated and sent back to the tank through the 3/8” return fitting. The excess fuel that the engine does not use is recirculated through the diaphragm regulator back to the suction side of the pump.

MANUFACTURING:
  • PureFlow AirDog products are manufactured in Shelbyville Indiana by a team of skilled workers with unsurpassed attention to detail and using the most stringent quality assurance.
KIT CONTENTS:
  • (1) AirDog II-5G DF-165
  • (1) AirDog II-5G Mounting Bracket
  • (1) Mounting Hardware Kit
  • (1) Frame Bracket
  • (1) Wiring Harness
  • (1) Bundle of Plastic Ties
  • (1) Spacer
  • (1) 14ft of Fuel Line
  • (3) 1/2” Straight Hose Quick Connect Fitting
  • (1) 1/2" 90 Degree Hose Quick Connect Fitting
  • (1) 3/8” 90 Degree Hose Quick Connect Fitting
  • (1) 3/8” Straight Hose Quick Connect Fitting
  • (1) Customer Service O-ring Replacement Kit
  • (2) 1/2” Male J2004 Quick Connect x 3/4-16” UNF
  • (1) 3/8” Male J2004 Quick Connect x 7/16” UNF
  • (1) 12mm to 12mm to 3/8in Return Tee
FEATURES & BENEFITS:
  • Supports 500-800 horsepower
  • Flows 165 Gallons Per Hour
  • Preset at 65 PSI
  • Variable fuel pressure

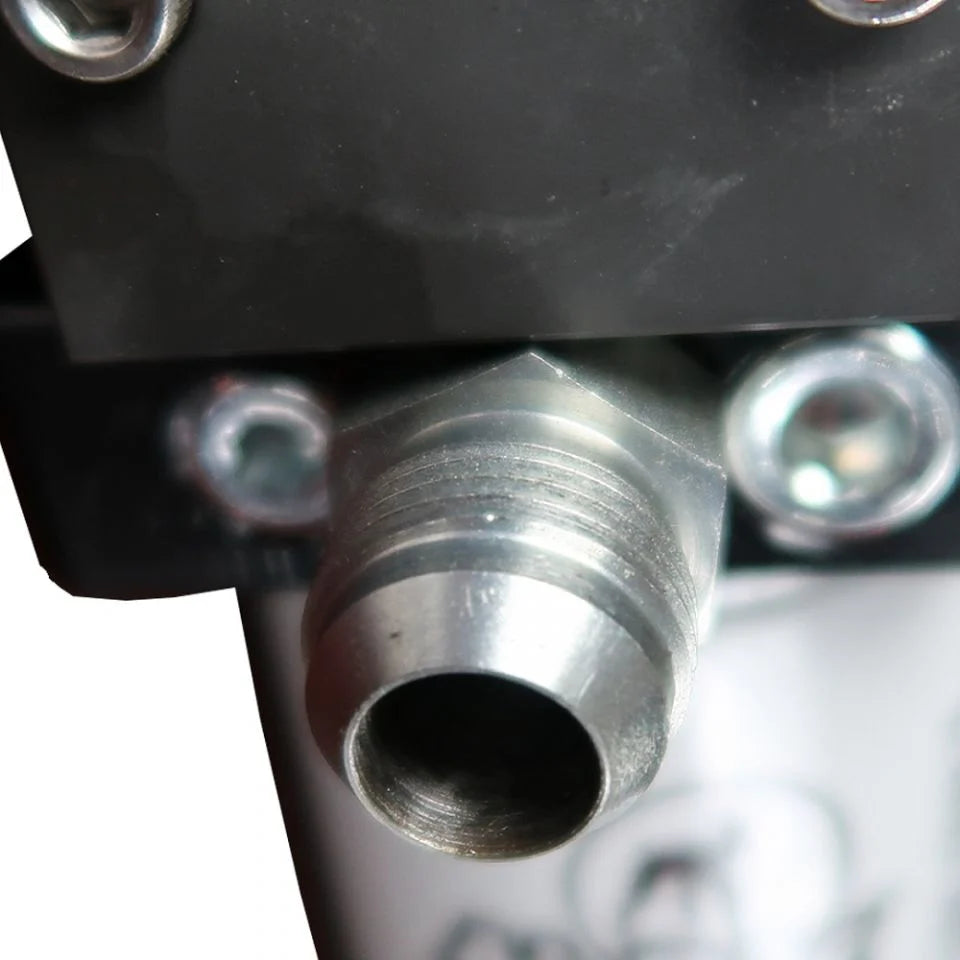

  • 3/4-16 o-ring boss (-8) inlet and outlet ports
  • 7/16-20 ORB return port (-4)
  • 4 bearing design with intermediate shaft to reduce pump noise and increase reliability
  • Low flow fuel return to reduce aeration in the tank
  • Demand Flow: only feeds as much fuel as what the engine needs
  • Dual feed that feeds fuel to both sides of the Gerotor Pump to decrease cavitation
